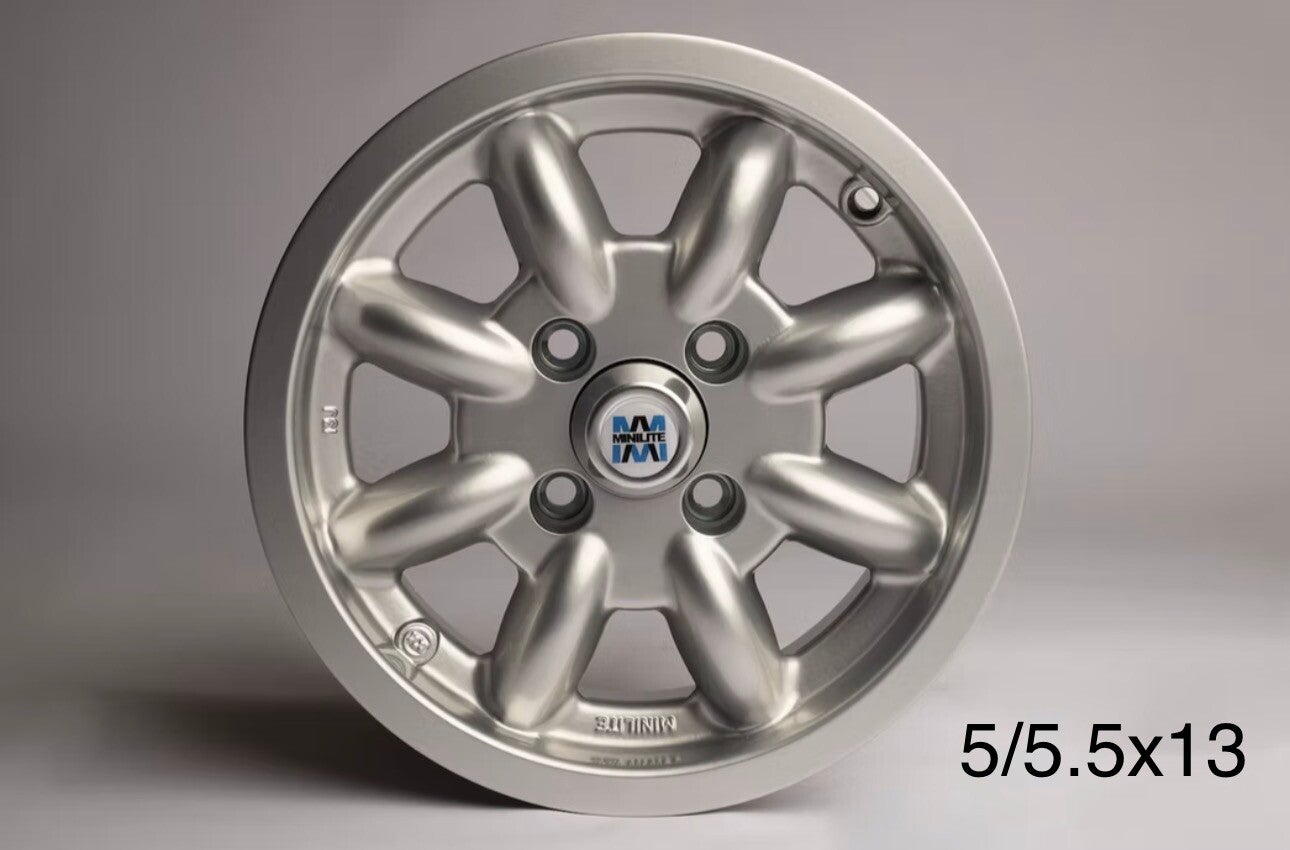

Wheel Size 5x13" Please note: Picture for illustration purposes only.

Part Number MA1355BPP.CY. Stand Colour Silver. Other Colours Available

  TECHNICAL INFORMATION

All ®Minilite wheels are low-pressure die cast, heat-treated, pressure tested, batch x-rayed and then machined using the latest computer-controlled equipment, before being finished with a three-layer of powder coat (primer, colour, and protective clear-coat).

Machining activities include setting the bolt pattern and the offset.

​Although our application list is already comprehensive, we are frequently adding new applications to it.

If your particular requirement is not listed, we may still be able to help.

Almost all our wheels are cast as blanks and we are able to machine a variety of PCD’s (bolt patterns) and offsets.

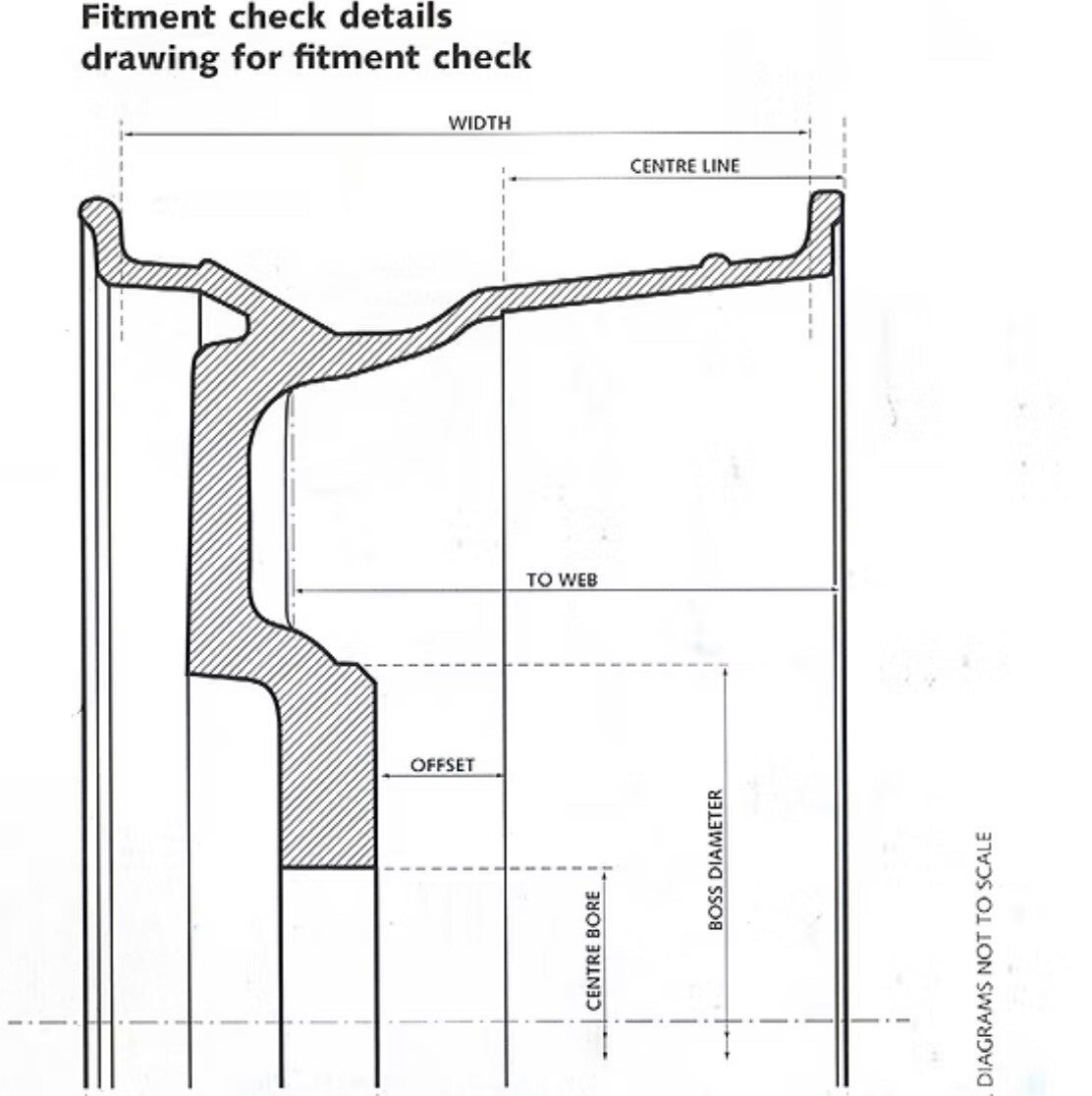

The offset is calculated from the centre line of the wheel

to the back face of the wheel, and a backface in line with

the centre of the wheel is zero offset.

​If the backface is forward of this line towards the front of

the wheel it is a positive offset and toward the rear of the

wheel from the centre line is a negative offset.

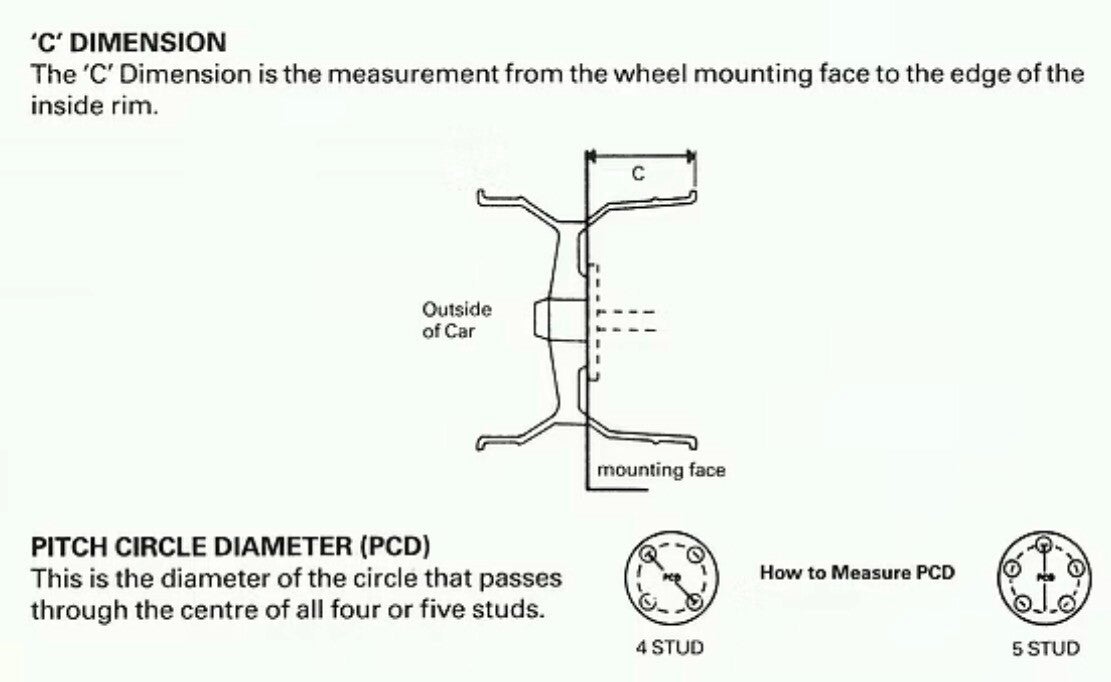

We can calculate these offsets if you can give us the ‘C’ dimension otherwise known as the backspace as shown in the following diagram. (Diagrams can be found in the photo section).
