Wheel Size 9 x 16"  Picture is For Illustration Purpose Only.

Part Number MA1690BPP.CY. Standard Silver. Other Colours Are Available.

   TECHNICAL INFORMATION

All ®Minilite wheels are low-pressure die cast, heat-treated, pressure tested, batch x-rayed and then machined using the latest computer-controlled equipment, before being finished with a three-layer of powder coat (primer, colour, and protective clear-coat).

Machining activities include setting the bolt pattern and the offset.

​Although our application list is already comprehensive, we are frequently adding new applications to it.

If your particular requirement is not listed, we may still be able to help.

Almost all our wheels are cast as blanks and we are able to machine a variety of PCD’s (bolt patterns) and offsets.

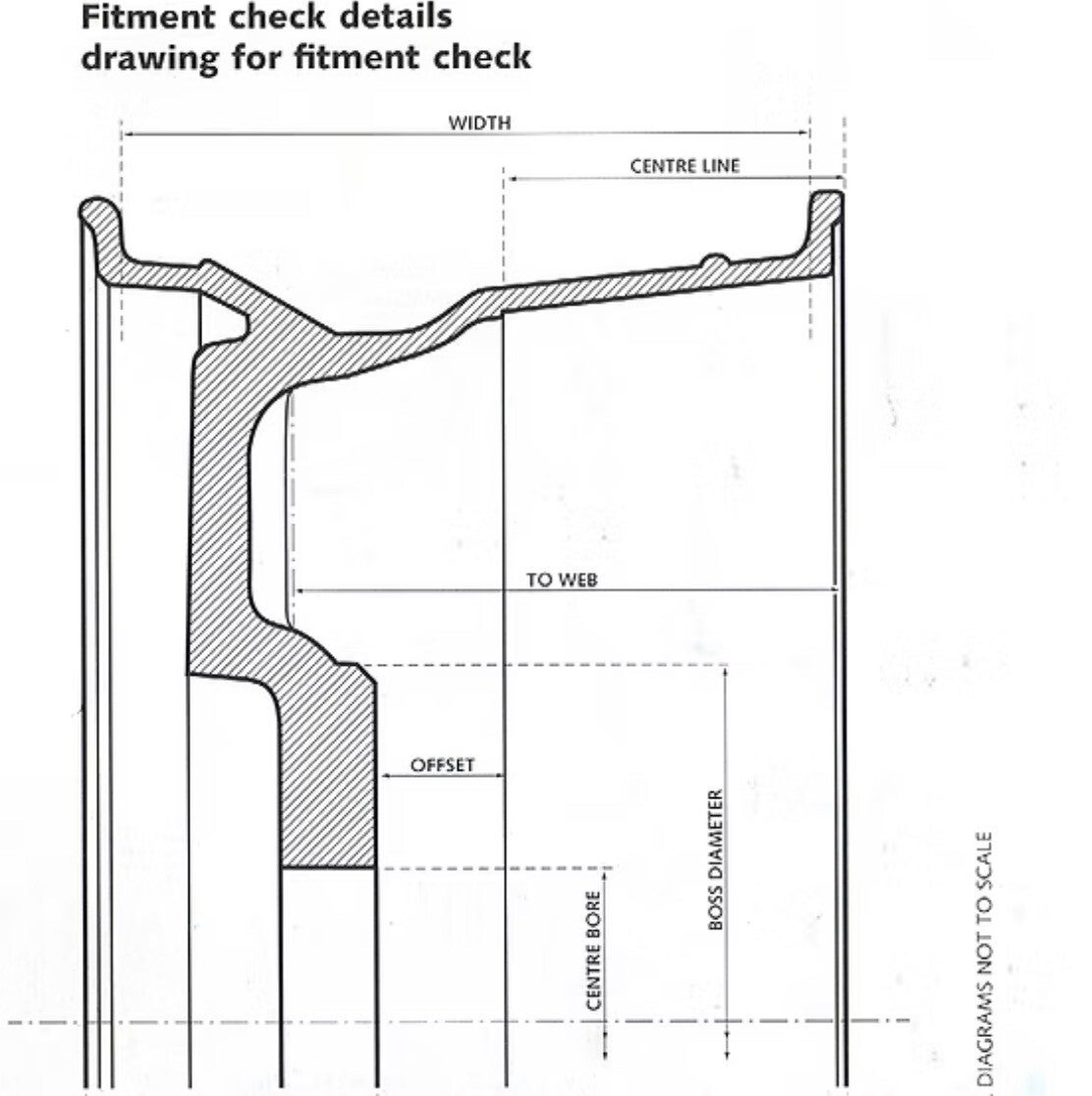

The offset is calculated from the centre line of the wheel to the back face of the wheel, and a backface in line with  the centre of the wheel is zero offset.

​If the backface is forward of this line towards the front of the wheel it is a positive offset and toward the rear of the wheel from the centre line is a negative offset.

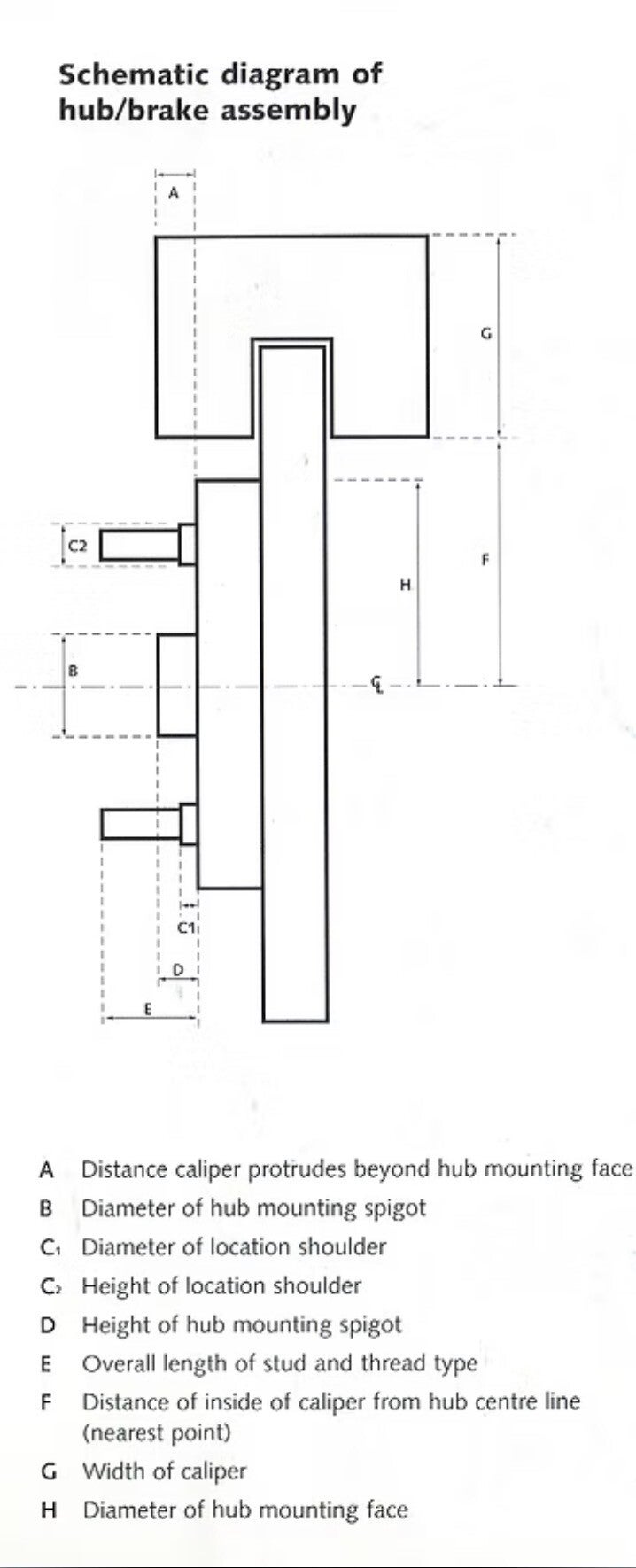

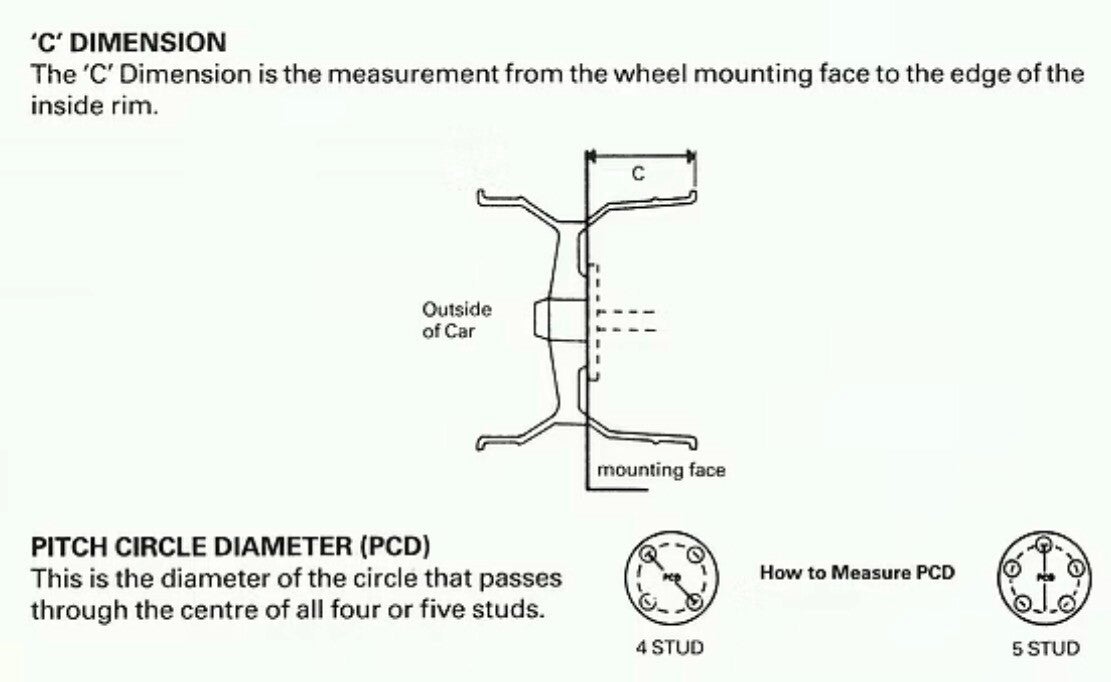

We can calculate these offsets if you can give us the ‘C’ dimension otherwise known as the backspace as shown in the following diagram. (Diagrams can be found in the photo Section).
